What is Java?

• Java generally refers to a combination of three things
  • the Java programming language
  • the Java Virtual machine
  • the Java platform

• Java the language is a high-level OOP language, influenced in various ways by C, C++ and Smalltalk
• Java has been around officially since 1996
• Java has evolved tremendously all through these years and has spawned a number of technologies like
  • Servlet technology
  • component technology like JavaBeans
  • JavaServerFaces
  • and a whole host of other technologies and tools

• Its syntax was designed to be familiar to those familiar with C-descended "curly brace" languages, but with stronger OO principiles than those found in C++
• One of Java's more controversial aspects is its incomplete object-orientation - Java primitives such as int, char, boolean etc. are not objects
• The inclusion of primitives increases Java performance, but at arguably expense of code clarity
• Java 5.0 introduces an "autoboxing" scheme to eliminate many uses of the wrapper classes, but in some ways it obsures what is really going on
• Java is a fail early language - because of its syntatic restrictions, many programming failures are simply not possible in Java
• With no direct access to pointers, pointer-arithmetic errors are non-existent
• Using an object as a different type than what it was originally declared to be requires an explicit cast, which gives the compiler an opportunity to reject illogical programming, like calling a String method on an Image
• Java is generally understood to be the most popular general-purpose computing language in use today

• Java is generally thought of in terms of three platforms
  • Standard Edition(SE)
  • Enterprise Edition (EE)
  • Micro Edition (ME)

• Each describes the combination of a language version, a set of standard libraries, and a virtual machine to execute the code
• EE is a superset of SE - any EE application can assume the existence of all of the SE libraries
• EE's use of the language is identical to SE's
• Because of the limitations of small devices like phones and set-top boxes, Java ME differs significantly from its siblings
• It is not a subset of SE
• ME eliminates some language features, such as the float primitive and Float class, reflecting the computing limitations of the platforms it runs on


Java Runtime Environment

• Java Runtime Environment is a subset of JDK
• It is an implementation of the JVM which actually executes Java programs

• JRE is a plug-in needed for running Java programs

• JRE includes JVM, core libraries and other additional components to run applications and applets written in Java


Java Virtual Machine

• One of the strong points in favor of Java is "Write Once, Run Anywhere"
• Java is platform-independent
• Before Java, programmers would have to write the program for the Windows OS and again for the Mac OS
• Java eliminates this problem with the use of JVM
• Java Virtual Machine as its name suggests is a "virtual" computer that resides in the real computer as a software process
• The JVM essentially runs between the computer and the Java program

• JVM gives Java the flexibility of platform independence
• At some point, Java source needs to become platform-native executable code
• This typically requires a two step process - the developer compiles the source into Java bytecode, and then a JVM converts this into native code for the host platform
• Java code is written in a ".java" file
• This code contains one or more Java language attributes like Class, Methods, Variables, Objects etc.
• Javac is used to compile this code and to generate a ".class" file
• Class file is also known as byte code
• java byte code is an input to JVM
• JVM reads this code and interprets it and executes the program
• JVM helps the JRE to run Java applications
• JVM operates on Java bytecode, which is normally generated from Java source code
• A JVM can also be used to implement programming languages other than Java
• For example, Ada source code can be compiled to Java bytecode, which may then be executed by a JVM
• JVMs can also be released by other companies besides Sun - JVMs using the "Java" trademark may be developed by other companies as long as they adhere to the JVM specification published by Sun

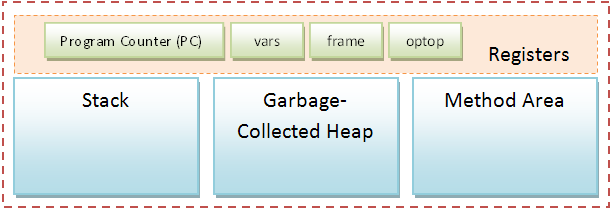

Components of JVM

• JVM is divided into several components like the stack, the garbage-collected heap, the registers and the method area
• Stack in JVM stores various method arguments as well as the local variables of any method
• Stack also keeps track of each and every method invocation - called the Stack Frame

• There are three registers that helps in stack manipulation - vars, frame and optop
• These registers point to different parts of current stack
• There are three sections in Java stack frame
  • Local Variables - contains all the local variables being used by the current method invocation. It is pointed to by the vars register
  • Execution Environment - used to maintain the operations of the stack itself. It is pointed to by the frame register
  • Operand Stack - used as a work space by bytecode instructions. It is here that the parameters for bytecode instructions are placed, and the results of bytecode instructions are found. The top of the operand stack is pointed to by the optop register

• Method Area - is the area where bytecode resides
• The program counter points to some byte in the method area
• It always keeps track of the current instruction which is being executed
• After execution of an instruction, the JVM sets the PC to next instruction
• Method area is shared among all the threads of a process
• If more than one thread is accessing any specific method or instruction, synchronization is required
• Synchronization in JVM is achieved through Monitors
• Garbage-Collected Heap - is where the objects in Java programs are stored
• Whenever an object is created using the new operator, the heap comes into picture and memory is allocated from there
• unlike C++, Java doesn't have free operator to free any previously allocated memory
• Java does this automatically using Garbage collection mechanism
• "Mark and Sweep" algorithm is used as garbage collection logic
• The local object reference resides on Stack, but the actual object resides in Heap
• Arrays in Java are objects, hence they also reside in Garbage-Collected Heap


(Compiled from http://viralpatel.net/blogs/2008/12/java-virtual-machine-an-inside-story.html, Beyond Java and Widipedia)

Learning Tactics

This article carries at its heart the purpose of helping you raise the level of your technical competence. It is about helping you make every second you spend learning something count; all using experience-grown tactics that prove their worth in practice.



With these tactics…

   1. You’ll learn more in less time
   2. You’ll remember more of what you learn
   3. You’ll gain better insights from problems and challenges you face



Tactic #1: Do Most of Your Learning By Example
Tactic #2: When Facing a Problem, Step Back and Reflect FIRST
Tactic #3: Learn More In Less Time By Condensing Your Understanding
Tactic #4: Learn Efficiently By Contrasting Close or Similar Concepts
Tactic #5: Avoid Learning Without Purpose



(Complete article at: http://moatazanany.wordpress.com/2008/12/25/serious-learning-tactics-for-tech-junkies/)

CHM Files

Microsoft Compiled HTML Help is a proprietary format for online help files, developed by Microsoft and first released in 1997 as a successor to the Microsoft WinHelp format. It was first introduced with Windows 98 release.



CHM files are a set of HTML files, which are indexed and bound together for easy readability. The files are compressed together with LZX compression.



On Windows computers, this help file can be compiled using hcc.exe.



To print all topics or a set of topics under a specific sub-topic in a CHM file - right click on a topic or sub-topic and select "Print this heading and all sub-topics".



CHM to HTML Conversion



A CHM file can be extracted to plain HTML with the command



    hh.exe -decompile sample_help sample_help.chm



On running the above command all files embedded in sample_help.chm will be extracted to a folder named sample_help.





How to copy images from a CHM file



On copy-pasting images from a CHM file to a word file we will get only an empty rectangle. To properly copy the image we must first paste the image to a image processing application like MS-Paint and then copy that image to Word.



Another method is to select "Paste Special" in Word and select the "Device Independent Bitmap" in the dialog that opens up, this will properly paste the image in the Word document.

An Introduction to SQLite

MIT's Introduction to Algorithms, Lecture 02

MIT's Introduction to Algorithms, Lecture 01

How to install Ubuntu Desktop 7.10 on VMware

Running Ubuntu Linux in Windows XP using VMware

Reflecting on Annotations

          The easiest way to check for an annotation is by using the isAnnotationPresent() method

­          This lets us specify the annotation to check for, and get a true/false result

public void testAnnotnPresent(PrintStream out) throws Exception {

      Class c = Super.class;

boolean inProgr = c.isAnnotationPresent(InProgress.class);

if(inProgr) out.println(“Super is in progress”);

else out.println(“Super is not in progress”);



}

­          This also lets us take advantage of the Inherited annotation

­          Although the Sub is not marked as in progress, it inherits from Super, which is in progress

­          Once the method in question is located, that method can be queried for a specific annotation using getAnnotation()

Class c = AnnotationTester.class;

MethodElement element = c.getMethod(“calculateInterest”,

                                    float.class, float.class);

GroupTODO groupTodo = element.getAnnotation(GroutpTODO.class);

String assignedTo = groupTodo.assignedTo();

out.println(“TODO Item on Annotation Tester is assigned to: ” +

assignedTo);

­          We must have to know exactly what we’re looking for – this is one of the few drawbacks of getAnnotation()

­

­          We can use getAnnotations(), if we’re trying to locate all annotations for a program element, or if we need to iterate through all annotations looking for a specific one

­          Following is a simple utility method that prints out all annotations for a supplied element

public void printAnnotations(AnnotatedElement e) {

      System.out.println(“Annotations for “ + e.toString());

      Annotation[] annotations = e.getAnnotations();

for(Annotation a : annotations) {

      System.out.println(a.annotationType().getName());

}

}

­          The getAnnotations() method prints both declared as well as inherited annotations

­          To get declared annotations alone, we need to use getDeclaredAnnotations() method

­          java.lang.reflect.AnnotatedElement is an interface that the reflection constructs like Method, Class etc. implement

­          It allows access to the annotation methods

­          The core reflection constructs all implement this interface –

o        Class

o        Constructor

o        Field

o        Method

o        Package

o        AccessibleObject

­          This allows all the above elements to be introspected for annotations

­          All these element types provide the following methods as a result of implementing AnnotatedType

o        public Annotation getAnnotation(Class annotationType)

o        public Annotation[] getAnnotations()

o        public Annotation[] getDeclaredAnnotations()

o        public boolean isAnnotationPresent(Class annotationType)

­          Since any Java program element can be treated as an AnnotatedType, we can always get at an element’s annotations using these methods

­

­          Reflection on annotations only works for annotation types that have Runtime retention

­          Even if the annotation is retained at compilation, if the VM doesn’t load this retention at class-load time, then reflection can’t pick up the annotation

­          Deprecation does not have runtime retention – it has source retention

­          So it is undetectable through Java reflection

­

Meta Annotations

­          As we can annotate classes, we can also annotate custom annotations

­          Meta-annotations or annotations on annotations are helpful in figuring out someone else’s intent for a customized annotations

­          There are four standard meta-annotations, all defined in the java.lang.annotation package

o        Target

Specifies which program elements can have annotations of the defined type

o        Retention

Indicates whether an annotation is tossed out by the compiler, or retained in the compiled class file

In cases where the annotation is retained, it also specifies whether it is read by the JVM at class load

o        Documented

Indicates that the defined annotation should be considered as part of the public API of the annotated program element

o        Inherited

It is intended for use on annotation types that are targeted as classes, indicating that the annotated type is an inherited one

­

­          Target

­          It is used to specify which program elements are allowed as targets for the defined annotation

­          This prevents misuse of an annotation, and is a sanity check for an annotation

­          Target should be used in the lines directly preceding the annotation definition

@Target({ElementType.TYPE, ElementType.METHOD

   ElementType.CONSTRUCTOR, ElementType.ANNOTATION_TYPE})

public @interface TODO {

      ....

}

­          Target takes a single member whose type is an array of values, each of which should be an enumerated value from the java.lang.annotation.ElementType enum

­          This enum defines the various program elements allowed as targets of an annotation type

package java.lang.annotation;



public enum ElementType {

      TYPE,

      FIELD,

      METHOD,

      PARAMETER,

      CONSTRUCTIR,

      LOCAL_VARIABLE,

      ANNOTATION_TYPE,

      PACKAGE

}

­          To use Target we need to import both Target and ElementType

­          Following is the definition for the Target annotation

package java.lang.annotation;



@Documented

@Retention(RetentionPolicy.RUNTIME)

@Target(ElementType.ANNOTATION_TYPE)

public @interface Target {

      ElementType[] value();

}

­          As we can see in the above definition, Target meta-annotation is used on itself

­          In case of annotation types that work for all program elements, we don’t have to use Target at all

­

­          Retention

­          The Retention meta-annotation defines how the Java compiler treats annotations

­          Annotations can be tossed out of a compiled class file by the compiler, or kept in the class file

­          Additionally, the JVM can ignore annotations – when they are retained in the class file, or read those annotations at the time a class is first loaded

­          All of these options are specified by Retention

­

­          Like Target, we specify the retention of an annotation type just before the annotation definition

­          Also like Target, the argument to Retention must be a value from an enum support class – java.lang.annotation.RetentionPolicy

package java.lang.annotation;



public enum RetentionPolicy {

      SOURCE,  //annotation is discarded by compiler

      CLASS,   //stored in the class file, but ignored by the VM

      RUNTIME  //stored in the class file and read by the VM

}

­          The default retention policy, for all annotations, is RetentionPolicy.CLASS

­          This retains annotations, but doesn’t require the VM to read them when classes are loaded

­          A good example of using Retention occurs in the SuppressWarnings annotation

­          As that annotation type is purely used for compilation – ensuring warning of the specified type are suppressed, it does not need to be retained in a class’s byte code

@Retention(RetentionPolicy.SOURCE)

public @interface SuppressWarnings {

      ....

}

­

­          Documented

­          Annotations are not normally visible in the codes’ Javadoc

­          This is where the Documented meta-annotation comes into play

­          We can use it to ensure that our annotations show up in generated Javadoc

­          We need to add a @Documented meta-annotation to any annotation type that we want to appear in Javadoc

import java.lang.annotation.Documented;

import java.lang.annotation.Retention ;

import java.lang.annotation.RetentionPolicy ;



@Documented

@Retention(RetentionPolicy.RUNTIME)

public @interface InProgress { }

­          Anytime we use the Documented annotation, we should pair it with a retention policy of RetentionPolicy.RUNTIME

­

­          Inherited

­          Annotations applied to super class are not automatically inherited by the sub-class

­          For example in the following code, InProgress annotation is not inherited by the sub-class Sub

@InProgress

public class Super {

      ....

}



public class Sub extends Super {

      ....

}

­          We need to used Inherited in the definition of the InProgress annotation type to fix this problem

@Documented

@Inherited

@Retention(RetentionPolicy.RUNTIME)

public @interface InProgress { }

­          The above definition will make any sub-class of a class annotated with the InProgress annotation inherit the annotation

­          Annotations marked as Inherited only apply to sub-classes, so implementing a method with annotations will not result in the annotations being inherited

­          If we override a method from a super class, we don’t inherit that specific method’s annotations

­          Only the annotations on the super class itself are inherited, and those and those by the sub-class as a whole

­

Annotations



­          Annotations provide a well-defined metadata mechanism

­          Metadata typically makes statements about source code that is interpreted at some point - usually by a code or data analysis tool

­          Annotations are modifiers that can be applied to package and type declarations, constructors, methods, fields, parameters and even variables

­          They take the form of name=value pairs, and we can use Java's built-in types, as well as define custom annotation types of our own.

­          Annotation type is a specific name of an annotation, along with any default values and related information

­          An annotation then uses an annotation type to associate some piece of information with a Java program element – methods, classes, variables etc.

­          So a class might only use one annotation type – like Override, and yet have ten or fifteen annotations – if it used Override ten or fifteen times

­          In short, annotation type refers to the definition of the annotation, while annotation refers to the actual usage of the definition.

­

­          Annotations are checked by the Java compiler – we cannot misspell an annotation name or a member name of the annotation

­          The compiler will complain about the misspelling

­

­          Standard annotation type

­          There are three standard annotations - all three are defined in the java.lang package:

o        @Override - used to indicate that a method overrides a method in its superclass

@Override

public String toString() {

      return super.toString() + “[modified by subclass]”;

}

o        @Deprecated - indicates that use of a method or element type is discouraged

@Deprecated

Public class Betamax { ... }

o        @SuppressWarnings - turns off compiler warnings for classes,  methods, or field and variable initializers

@SupressWarnings(“unchecked”)

public void method1() { …. }

­

­          In addition to the three standard annotation types, there are three categories of annotations

o        Marker annotations – they are used with annotation types that define no members

They simply provide information contained within the name of the annotation itself - @MarkerAnnotation

An annotation whose members all have default values can also be used as a marker, since no information must be passed in

o        Single-value annotations – they have just a single member, named value. The format of a single-value annotation is - @SingleValueAnnotation(“some value”)

o        Full annotations – it isn’t really a category, it just uses the full range of annotation syntax

Here parentheses follow the annotation name, and all members are assigned values

        @Reviews({ //curly braces indicate an array of values

@Review(grade=”EXCELLENT”, reviewer=”df”),

@Review(grade=”SATISFACTORY”, reviewer=”eg”)})

­          There are no semicolons at the end of annotation lines

­

­          Custom annotation type

­          Java allows us to define our own annotations with the @interface keyword

­          Annotation types are, at their basic level, Java interfaces

­          They look similar to a normal Java interface definition, but we use the @interface keyword instead of interface, which tells the compiler that we’re writing an annotation type instead of a normal interface

­          Following is a simple marker annotation type

package com.myapp;

public @interface InProgress { }

­          We can use this on any method or class

@com.myapp.InProgress

public void calculateInterest(float amount, float rate) {

}

­

­          Following is a simple single-value annotation

package com.myapp;

public @interface TODO {

      String value();

}

­          Here value is not just a member declaration, but also a method declaration

­          We are actually defining a method called value(), and the compiler then automatically creates a member variable with the same name

­          Also, since the annotation types function like interfaces, the methods are all implicitly abstract, and have no bodies

­          This annotation can be used as follows

@TODO(value=”test”)

public void method1() { }

­          Or we can use the shorthand method that is applicable to single-value annotations

@TODO(“test”)

public void method1() { }

­

­          Following is an annotation with multiple members

package com.myapp;



import java.util.Date;



public @interface GroupTODO {

      public enum Severity {CRITICAL, IMPORTANT, TRIVIAL};



      Severity severity() default Severity.IMPORTANT;

      Strint item();

String assignedTo();

String dateAssigned();

}

­          Any data type including enums can be used as a member of an annotation type

­          In the above example the member severity has a default value

­          The above annotation type can be used as follows

@GroupTODO( severity=GroupTODO.Severity.CRITICAL,

            item=”Calculate interest per month”,

            assignedTo=”Fred”,

            dateAssigned=”12/23/2008”)

public void calculateInterest(float amount, float rate) {

}

­

­          The @interface keyword implicitly indicates an extension of java.lang.annotation.Annotation

­          So we can’t compile an annotation type that explicitly tries to extend anything else

­          However, we can extend and implement annotation types, although these extensions and implementations are not treated as annotation types

­
