Threads: Producer-Consumer Problem

Producer-Consumer problem is a very common question related to threads. Following is a simple solution to the problem. QueueClass represents the queue which both the Producer and Consumer has to access. The critical methods in the QueueClass - add() and remove() are synchronized in order to maintain the status quo between the Producer and Consumer threads.

view plainprint?

1. import java.util.List;
2. import java.util.ArrayList;
3.
4. public class ProducerConsumerTest {
5.
6.  /**
7.   * @param args
8.   */
9.  public static void main(String[] args) {
10.   QueueClass q = new QueueClass();
11.   Producer p = new Producer(q, 10);
12.   Consumer c = new Consumer(q, 10);
13.
14.   Thread t1 = new Thread(p);
15.   Thread t2 = new Thread(c);
16.   c.setpThread(t1);
17.   t1.start();
18.   t2.start();
19.  }
20.
21. }
22.
23. class Producer implements Runnable {
24.  QueueClass q;
25.  int size;
26.
27.  Producer(QueueClass q, int size) {
28.   this.q = q;
29.   this.size = size;
30.  }
31.
32.  public void run() {
33.   int index = -1;
34.   while(true) {
35.    q.add(new String("" + ++index));
36.    try {
37.     Thread.sleep(1000);
38.    }
39.    catch(InterruptedException e) {
40.     e.printStackTrace();
41.    }
42.   }
43.  }
44. }
45.
46. class Consumer implements Runnable {
47.  QueueClass q;
48.  int size;
49.  Thread pThread;
50.
51.  public void setpThread(Thread pThread) {
52.   this.pThread = pThread;
53.  }
54.
55.  Consumer(QueueClass q, int size) {
56.   this.q = q;
57.   this.size = size;
58.  }
59.
60.  public void run() {
61.   while(true) {
62.    q.remove();
63.    try {
64.     Thread.sleep(1000);
65.    }
66.    catch(InterruptedException e) {
67.     e.printStackTrace();
68.    }
69.   }
70.  }
71. }
72.
73. class QueueClass {
74.  List<string> queue = new ArrayList<string>();
75.  int size = 10;
76.
77.  public synchronized void add(String s) {
78.   if(getSize() < size) queue.add(s);
79.   System.out.println("Added: " + queue);
80.   try {
81.    if(getSize() >= size) {
82.     notifyAll();
83.     wait();
84.    }
85.   }
86.   catch(InterruptedException e) {
87.    e.printStackTrace();
88.   }
89.  }
90.
91.  public synchronized void remove() {
92.   if(getSize() > 0) queue.remove(queue.size()-1);
93.   System.out.println("Removed: " + queue);
94.   try {
95.    if(getSize() <= 0) {
96.     notifyAll();
97.     wait();
98.    }
99.   }
100.   catch(InterruptedException e) {
101.    e.printStackTrace();
102.   }
103.  }
104.
105.  public synchronized int getSize() {
106.   return queue.size();
107.  }
108. }
109.
110. </string></string>

import java.util.List;
import java.util.ArrayList;

public class ProducerConsumerTest {

 /**
  * @param args
  */
 public static void main(String[] args) {
  QueueClass q = new QueueClass();
  Producer p = new Producer(q, 10);
  Consumer c = new Consumer(q, 10);

  Thread t1 = new Thread(p);
  Thread t2 = new Thread(c);
  c.setpThread(t1);
  t1.start();
  t2.start();
 }

}

class Producer implements Runnable {
 QueueClass q;
 int size;

 Producer(QueueClass q, int size) {
  this.q = q;
  this.size = size;
 }

 public void run() {
  int index = -1;
  while(true) {
   q.add(new String("" + ++index));
   try {
    Thread.sleep(1000);
   }
   catch(InterruptedException e) {
    e.printStackTrace();
   }
  }
 }
}

class Consumer implements Runnable {
 QueueClass q;
 int size;
 Thread pThread;

 public void setpThread(Thread pThread) {
  this.pThread = pThread;
 }

 Consumer(QueueClass q, int size) {
  this.q = q;
  this.size = size;
 }

 public void run() {
  while(true) {
   q.remove();
   try {
    Thread.sleep(1000);
   }
   catch(InterruptedException e) {
    e.printStackTrace();
   }
  }
 }
}

class QueueClass {
 List queue = new ArrayList();
 int size = 10;

 public synchronized void add(String s) {
  if(getSize() < size) queue.add(s);
  System.out.println("Added: " + queue);
  try {
   if(getSize() >= size) {
    notifyAll();
    wait();
   }
  }
  catch(InterruptedException e) {
   e.printStackTrace();
  }
 }

 public synchronized void remove() {
  if(getSize() > 0) queue.remove(queue.size()-1);
  System.out.println("Removed: " + queue);
  try {
   if(getSize() <= 0) {
    notifyAll();
    wait();
   }
  }
  catch(InterruptedException e) {
   e.printStackTrace();
  }
 }

 public synchronized int getSize() {
  return queue.size();
 }
}

Linked List

Linked list is a fundamental data structure, which uses reference stored in each node to iterate through subsequent nodes. A linked list has many types like singly linked list, doubly linked list and circular linked list. Following is a simple bare bone implementation of singly linked list:

The base interface:

view plainprint?

1. public interface LinkedList<t> {
2.  public boolean add(T t);
3.  public boolean remove(T t);
4.  public void removeAll();
5.  public int size();
6.  public boolean isEmpty();
7. }</t>

public interface LinkedList {
 public boolean add(T t);
 public boolean remove(T t);
 public void removeAll();
 public int size();
 public boolean isEmpty();
}

Class representing each node:

view plainprint?

1. public class LinkNode<t> {
2.  private LinkNode<t> nextNode = null;
3.  private T node = null;
4.
5.  public LinkNode() {
6.
7.  }
8.
9.  public LinkNode(T node) {
10.   this.node = node;
11.  }
12.
13.  public T getNode() {
14.   return node;
15.  }
16.
17.  public void setNode(T node) {
18.   this.node = node;
19.  }
20.
21.  public LinkNode<t> getNextNode() {
22.   return nextNode;
23.  }
24.
25.  public void setNextNode(LinkNode<t> nextNode) {
26.   this.nextNode = nextNode;
27.  }
28.
29.  public String toString() {
30.   return node.toString();
31.  }
32.
33.  public int hashCode() {
34.   return node.hashCode();
35.  }
36.
37.  public boolean equals(LinkNode<t> t) {
38.   return node.equals(t.getNode());
39.  }
40. }</t></t></t></t></t>

public class LinkNode {
 private LinkNode nextNode = null;
 private T node = null;

 public LinkNode() {

 }

 public LinkNode(T node) {
  this.node = node;
 }

 public T getNode() {
  return node;
 }

 public void setNode(T node) {
  this.node = node;
 }

 public LinkNode getNextNode() {
  return nextNode;
 }

 public void setNextNode(LinkNode nextNode) {
  this.nextNode = nextNode;
 }

 public String toString() {
  return node.toString();
 }

 public int hashCode() {
  return node.hashCode();
 }

 public boolean equals(LinkNode t) {
  return node.equals(t.getNode());
 }
}

Implementation for a singly linked list:

view plainprint?

1. public class SingleLinkedList<t> implements LinkedList<t> {
2.  LinkNode<t> header = null;
3.  LinkNode<t> lastNode = null;
4.
5.  public SingleLinkedList() {
6.
7.  }
8.
9.  public boolean add(T t) {
10.   LinkNode<t> newNode = new LinkNode<t>(t);
11.   if(header == null) {
12.    header = newNode;
13.   }
14.   else {
15.    lastNode.setNextNode(newNode);
16.   }
17.   lastNode = newNode;
18.   return true;
19.  }
20.
21.  public boolean remove(T t) {
22.   LinkNode<t> tmp = header;
23.   LinkNode<t> prev = null;
24.
25.   while(tmp != null) {
26.    if(tmp.getNode().equals(t)) {
27.     if(prev == null) header = null;
28.     else if(tmp.getNextNode() != null) prev.setNextNode(tmp.getNextNode());
29.     return true;
30.    }
31.    prev = tmp;
32.    tmp = tmp.getNextNode();
33.   }
34.   return false;
35.  }
36.
37.  public void removeAll() {
38.   header = null;
39.  }
40.
41.  public boolean isEmpty() {
42.   return header == null;
43.  }
44.
45.  public int size() {
46.   LinkNode<t> tmp = header;
47.   int size = 0;
48.   while(tmp != null) {
49.    size++;
50.    tmp = tmp.getNextNode();
51.   }
52.
53.   return size;
54.  }
55.
56.  public String toString() {
57.   StringBuffer str = new StringBuffer("[");
58.   LinkNode<t> tmp = header;
59.   while(tmp != null) {
60.    str.append(tmp.toString());
61.    tmp = tmp.getNextNode();
62.    if(tmp != null) str.append(", ");
63.   }
64.   str.append("]");
65.   return str.toString();
66.  }
67. }</t></t></t></t></t></t></t></t></t></t>

public class SingleLinkedList implements LinkedList {
 LinkNode header = null;
 LinkNode lastNode = null;

 public SingleLinkedList() {

 }

 public boolean add(T t) {
  LinkNode newNode = new LinkNode(t);
  if(header == null) {
   header = newNode;
  }
  else {
   lastNode.setNextNode(newNode);
  }
  lastNode = newNode;
  return true;
 }

 public boolean remove(T t) {
  LinkNode tmp = header;
  LinkNode prev = null;

  while(tmp != null) {
   if(tmp.getNode().equals(t)) {
    if(prev == null) header = null;
    else if(tmp.getNextNode() != null) prev.setNextNode(tmp.getNextNode());
    return true;
   }
   prev = tmp;
   tmp = tmp.getNextNode();
  }
  return false;
 }

 public void removeAll() {
  header = null;
 }

 public boolean isEmpty() {
  return header == null;
 }

 public int size() {
  LinkNode tmp = header;
  int size = 0;
  while(tmp != null) {
   size++;
   tmp = tmp.getNextNode();
  }

  return size;
 }

 public String toString() {
  StringBuffer str = new StringBuffer("[");
  LinkNode tmp = header;
  while(tmp != null) {
   str.append(tmp.toString());
   tmp = tmp.getNextNode();
   if(tmp != null) str.append(", ");
  }
  str.append("]");
  return str.toString();
 }
}

Test class which uses the singly linked list implementation:

view plainprint?

1. public class LinkedListTest {
2.
3.  /**
4.   * @param args
5.   */
6.  public static void main(String[] args) {
7.   // TODO Auto-generated method stub
8.   LinkedList<string> list = new SingleLinkedList<string>();
9.   System.out.println("Is list empty? " + list.isEmpty());
10.
11.   list.add("1");
12.   list.add("2");
13.   list.add("3");
14.   list.add("2");
15.   list.add("2");
16.   list.add("3");
17.   System.out.println(list.size());
18.   System.out.println(list);
19.   System.out.println("Is list empty? " + list.isEmpty());
20.
21.   list.remove("2");
22.   System.out.println(list.size());
23.   System.out.println(list);
24.   System.out.println("Is list empty? " + list.isEmpty());
25.
26.   list.removeAll();
27.   System.out.println("Is list empty? " + list.isEmpty());
28.  }
29.
30. }</string></string>

public class LinkedListTest {

 /**
  * @param args
  */
 public static void main(String[] args) {
  // TODO Auto-generated method stub
  LinkedList list = new SingleLinkedList();
  System.out.println("Is list empty? " + list.isEmpty());

  list.add("1");
  list.add("2");
  list.add("3");
  list.add("2");
  list.add("2");
  list.add("3");
  System.out.println(list.size());
  System.out.println(list);
  System.out.println("Is list empty? " + list.isEmpty());

  list.remove("2");
  System.out.println(list.size());
  System.out.println(list);
  System.out.println("Is list empty? " + list.isEmpty());

  list.removeAll();
  System.out.println("Is list empty? " + list.isEmpty());
 }

}

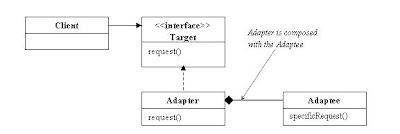

Adapter Pattern

-  The adapter acts as the middleman by receiving requests from the client and converting them into requests that make sense on the vendor classes

­-  The adapter implements the target interface and holds an instance of the adaptee

-  The actual interface that the client needs is the target interface

-  We wrap the target interface with an adaptee interface, which does the work of the target interface

-  The client makes the request on the adapter, and the adapter delegates it to the adaptee interface

-  The client doesn't know that the actual work was done by the adaptee

-  Client and the adaptee are decoupled – neither knows about the other

-  Here's how the client uses the adapter

o        The client makes a request to the adapter by calling a method on it using the target interface

o        The adapter translates that request into one or more calls on the adaptee using the adaptee interface

o        The client receives the results of the call and never knows there is an adapter doing the translation

­

­-  The Adapter Pattern converts the interface of a class into another interface the clients expect

­-  Adapter lets classes work together that couldn't otherwise because of incompatible interfaces

­-  This decouples the client from the implemented interface,

­-  If the interface changes over time, the adapter encapsulates the change so that the client doesn't have to be modified each time it needs to operate against a different interface

­-  It is not necessary that the adapter should wrap only one adaptee – it can hold two or more adaptees that are need to implement the target interface



­- There are two types of adapters

o        object adapters – uses composition - the adapter is composed of adaptee

§         it can not only adapt an adaptee class, but any of its subclasses

o        class adapters – uses multiple inheritance - the adapter subclasses both the target and the adaptee

§         it is committed to one specific adaptee class, but it doesn't have to reimplement the entire adaptee

§         it can also override the behavior of the adaptee, since its just subclassing

§         this cannot be used in Java since it involves multiple inheritance



­- Although Decorator and Adapter patterns looks similar, they are totally different in intent

o        Decorator wraps an object and adds new behavior

o        Adapter wraps an object and converts it into an interface the client expects



­- Following is an example of Adapter pattern. This example adapts an Enumerator to act as an Iterator

view plainprint?

1. public class EnumerationAdapter implements Iterator {
2.
3.     Enumeration enumeration;
4.
5.     public EnumerationAdapter(Enumeration enumeration) {
6.
7.         this.enumeration = enumeration;
8.
9.     }
10.
11.     public boolean hasNext() {
12.
13.         enumeration.hasMoreElements();
14.
15.     }
16.
17.     public Object next() {
18.
19.         enumeration.nextElement();
20.
21.     }
22.
23.     public void remove() {
24.
25.         throw new UnsupportedOperationException();
26.
27.     }
28.
29. }

	public class EnumerationAdapter implements Iterator {

		Enumeration enumeration;

		public EnumerationAdapter(Enumeration enumeration) {

			this.enumeration = enumeration;

		}

		public boolean hasNext() {

			enumeration.hasMoreElements();

		}

		public Object next() {

			enumeration.nextElement();

		}

		public void remove() {

			throw new UnsupportedOperationException();

		}

	}
